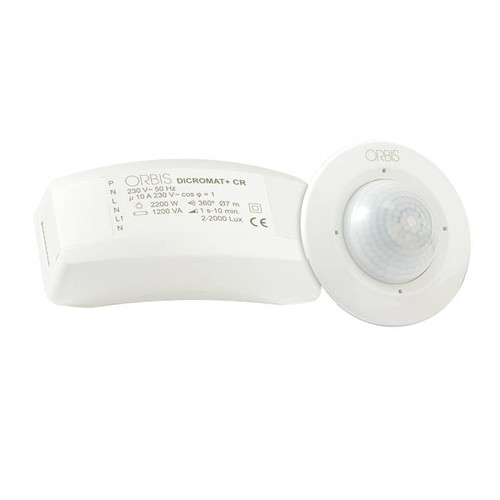

Programmable Motion Detector with Controller, LED Status, Zero-Crossing Relay, Detection Field Limiter Included

The DICROMAT + CR is a programmable motion detector with advanced features, making it ideal for installations in long corridors or large spaces. It allows the integration of additional sensors, streamlining and economizing the installation process. With features like a zero-crossing relay, detection field limiter, and LED status indicator, this motion detector ensures reliable performance and easy parameter adjustments without dismantling the unit.

Product Features

• Programmable motion detector with controller, LED status, and zero-crossing relay.
• Additional sensors simplify and economize installation, eliminating the need for multiple units.
• DICROMAT 2 +CR 2 includes two output contacts with different timings, ideal for controlling two circuits with one detector.
• Push-button input allows use as a staircase timer, independent of lighting conditions.
• Optionally programmable using the MANDO CR remote control.
• Status LED activates upon motion detection.
• Stepless dimming timing with adjustable parameters: detection area, timing, and light sensitivity.
• Zero-crossing relay for improved switching of LED, fluorescent, or low-energy lighting.
• No need to dismantle the unit for parameter adjustments after installation.
• Detection field limiter included for precise detection area control.
• Accessory options: additional DICROMAT SENSOR + and MANDO CR remote control.
• Supports up to 4 DICROMAT SENSOR + units.
• Power supply: 230 VAC, 50 Hz.

Max. Recommended Load

• Incandescent Lamps: 2200W
• Fluorescent Tubes: 1200 VA
• Low Voltage Halogen (12V AC): 2000 VA
• Halogen (230V AC): 2200W
• Low Consumption Lamps (CFL): 1000 VA
• LED Lamps: 500 VA
• Downlights: 900 VA

Document Downloads

Download Data Sheet
