Description

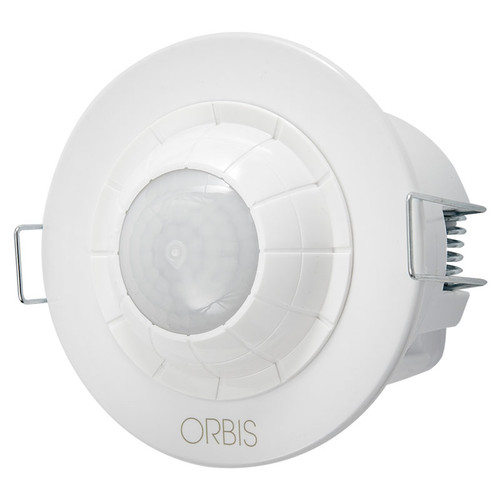

The DICROMAT PIR Motion Detector offers adjustable timing and light sensitivity, making it a versatile solution for various installations. With a discreet design, it is easily installed using a 65 mm drill, providing basic yet effective functionality. The included detection field limiter allows for precise control, enabling the cancellation of detection in specific areas.
Product Features
- Product Code: DICROMAT
- Built-in sunroof installation using a 65 mm drill.
- Discreet design suitable for most installations.
- Adjustable parameters: timing and light sensitivity.
- Detection field limiter allows detection cancellation in specific points within the detection area.
Max. Recommended Load
- Incandescent Lamps: 1200W
- Fluorescent Tubes: 400 VA
- Low Voltage Halogen (12V AC): 800 VA
- Halogen (230V AC): 1200 W
- Low Consumption Lamps (CFL): 400 VA
- Low Consumption Lamps (downlights): 400 VA
- LED Lamps: 40 VA
Extra Information
Brand:
ORBIS
Power Supply:
230V AC, 50-60 Hz/120V AC 60Hz
Switch Capacity:
6A to 230V AC
Timing:
From 35 seconds to 20 minutes
Light Sensibility:
Adjustable from 5 to 1.000 lux
Operating Temp:
-10 ºC to +40 ºC
Protection Degree:
IP 20 according to EN 60529
Detection Angle:
360º
Detection Field:
Up to 7m in diameter, 2.5m high at 20ºC
