Description

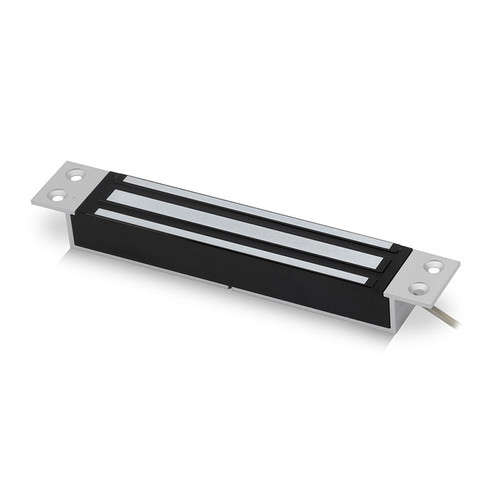

The A10000R Monitored Mini Mortice Magnet offers a practical solution for secure door locking with a 600lbs holding force. Operating on a 12~24Vdc selectable voltage and encased in a durable aluminium housing, it is suitable for a variety of settings. The key feature of this electromagnet is its magnetic bond sensor, which allows for remote monitoring of the door's lock status, enhancing overall security management.
Product Features
- Strong 600lbs (272Kg) holding force for dependable security.
- Selectable 12~24Vdc operating voltage, versatile for different setups.
- Constructed with a robust aluminium housing and a nickel-plated armature.
- Mortice mounting provides a secure, integrated installation.
- Stable performance with a voltage tolerance of ±10%.
- Low current draw: 480mA at 12Vdc, 240mA at 24Vdc at 20°C.
- Suitable for use in temperatures ranging from -10~55°C (14 to 131°F).
- Magnetic bond sensor for remote door lock/unlock status checks.
- Humidity resistant (0~95% non-condensing).
- Compact size (228 × 38 × 27 mm) and a weight of approx. 2.0kg.
Additional Details
- Ideal for applications where remote monitoring of door security is needed.
- Offers a balance of strength and convenience in a compact form.
Suitable Brackets
- 300BP
- U320M
Document Downloads
Extra Information
Brand:
ICS
Door Type:
Single Door
Internal/External Usage:
Internal
Holding Force:
600lb (272Kg)
Operating Mode:
Fail Safe / Fail Open
Power Source:
12~24V DC Selectable
Fire Rated:
No
Monitored/Unmonitored:
Monitored
Door Status:
No
LED Indication:
No
Weight:
2Kg (approx)
